09-13 Volkswagen Golf GTI MK6 Big Brake Kit S60 6 Piston Forged Caliper

1set
MOQ
1499-1699USD per set
Price
09-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper
Features Gallery Product Description Request A Quote
Features
Specifications
Car Model: VW GOLF Mk7 GTI
Material: Aerial 6082 Aluminum Alloy
Pistons Quantity: 6 Piston
Piston Size: 38.1mm 31.8mm 27mm
Color: Red Blue Yellow Black Silver Green
Weight: 45kg
Disc Size: 378*32mm 405*34mm
Wheel Size: 18inch/19inch Required
High Light:

S60 6 Piston Forged Caliper

,

TEI Racing Rotor Big Brake Kit

,

TEI Racing S60 6 Piston Forged Caliper

Basic Infomation
Place of Origin: China
Brand Name: TEI Racing
Model Number: S60
Payment & Shipping Terms
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 300 sets per month
Product Description

TEI Racing S60 6 Piston Forged Caliper with 405*34mm rotor Big Brake Kit For VW Golf 20inch wheel



Product Detail:

Brand TEI Craft One-piece Forged Body Caliper Length 289mm
Model S60 Caliper Material Aerial 6082 Aluminum Alloy Caliper Width 165mm
Pistons 6 POTS Piston Material Aluminum Alloy Caliper Height 88mm
Logo Carved Piston Diameter 38.1mm 31.8mm 28.6mm Caliper Weight 3.52kg/pcs

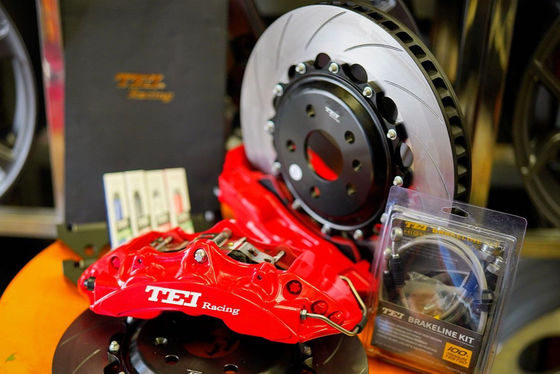

2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads

09-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 0



Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49

09-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 1



Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm


Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


Brackets/Adapters

Material: Aerial 6061 Aliminum Alloy
Craft: CNC

Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

09-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 2



BELOW IS A LIST OF AUTOMOBILES THE 09-13 VOLKSWAGEN GOLF GTI MK6

Year Make Model
2009 Volkswagen Golf GTI
2010 Volkswagen Golf GTI
2011 Volkswagen Golf GTI
2012 Volkswagen Golf GTI
2013 Volkswagen Golf GTI



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.





09-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 309-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 409-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 509-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 609-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 709-13 Volkswagen Golf GTI MK6 Big Brake Kit  S60 6 Piston Forged Caliper 8
