| Audi | AUDI TT 2.0T / 3.2 V6 AWD / TTS Front (8J) 2007 |
| Audi | AUDI TT 3.2 V6 AWD Front / TTS Front (8J) 2006 |
| Audi | AUDI TT 3.2L Rear (8J) 2007 |
| Audi | AUDI TT Front 1.8 20V (110/132/165Kw) (8N) 1999 2006 |
| Audi | AUDI TT RS Front (8J) 2009 |
| Audi | AUDI TT RS Front (8J) 2009 |
| Audi | AUDI TT RS Rear (8J) 2009 |
| Audi | AUDI TTS Rear (8J) 2009 |
What's in the Box

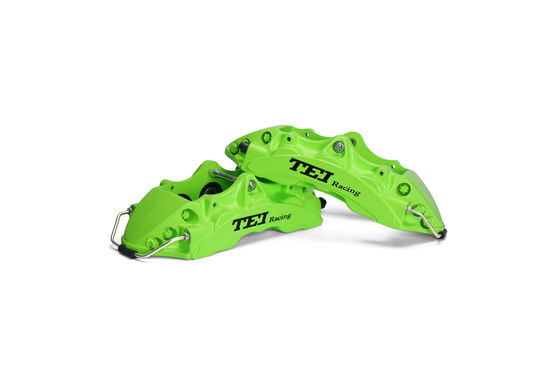

Passenger Side Front TEI Racing Six-Piston Caliper
Driver Side Front TEI Racing Six-Piston Caliper
2-piece TEI Racing Front Rotors
Braided Stainless Steel Brake Lines
Brake Pads (one set, for both calipers)
Mounting Brackets
Installation Hardware
Features
TEI Racing Bolt-On Front Brake Kit
6 Piston Monoblock Aluminum Calipers
2-piece (378mm/405mm) Type 1 Slotted /Drilled Brake Rotors
Braided Stainless Steel Lines
Compatible with Factory Master Cylinder, ABS and Traction Control System
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
ROTOR SPECS:
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
WARRANTY:
10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.
| TEI Racing Rotor Size | Minimum Inch Wheel Size |
| 285*24mm | 15inch wheels |
| 300*24mm | 16inch wheels or above |
| 300*28mm | 17inch wheels or above |
| 330*28mm | 17inch wheels or above |
| 345*28mm | 18inch wheels or above |
| 355*32mm | 18inch wheels or above |
| 378*32mm | 19inch wheels or above |
| 405*34mm | 20inch wheels or above |
Installation Info
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
