BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted

1set
MOQ
1499-1699USD per set
Price
BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted
Features Gallery Product Description Request A Quote
Features
Specifications
Car Model: RAM Pickup Truck BBK
Car Of Year: 2002-2009 2009-2021 2019-
Wheel Size: 18inch 19inch 20inch
Material: Aerial 6082 Aluminum Alloy
Piston: 6pistons
Disc Size: 378*32mm 405*34mm
Weight: 46kg Front Kit
High Light:

405x34mm Rotor Big Brake Kit

,

6082 Aluminum Big Brake Kit

,

BBK TEI Racing Big Brake Kit

Basic Infomation
Place of Origin: China
Brand Name: TEI Racing
Model Number: S60
Payment & Shipping Terms
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 kits per month
Product Description





The Ram pickup (Dodge Ram until 2010) is a full-size pickup truck manufactured by FCA US LLC (formerly Chrysler Group LLC) and marketed from 2010 onwards under the Ram Trucks brand. The current fifth-generation Ram debuted at the 2018 North American International Auto Show in Detroit, Michigan, in January of that year.

Previously, Ram BBK was part of the Dodge line of light trucks. The name Ram was first used in 1981 model year Dodge Trucks BBK in October 1980, following the retiring and rebadging of the Dodge D Series BBK pickup trucks as well as B-series vans, though the company had used a ram's-head hood ornament on some trucks as early as 1933.

Ram trucks BBK  have been named Motor Trend magazine's Truck of the Year seven times; the second-generation Ram BBK won the award in 1994, the third-generation Ram heavy duty BBK won the award in 2003, the fourth-generation Ram Heavy Duty BBK won in 2010 and the fourth-generation Ram 1500 BBK won in 2013 and 2014, and the current fifth-generation Ram 1500 BBK won in 2019 and 2020.

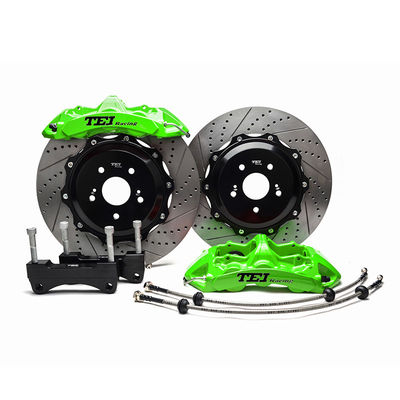

What's in the Box

  • Passenger Side Front TEI Racing Six-Piston Caliper
  • Driver Side Front TEI Racing Six-Piston Caliper
  • 2-piece TEI Racing Front Rotors
  • Braided Stainless Steel Brake Lines
  • Brake Pads (one set, for both calipers)
  • Mounting Brackets
  • Installation Hardware
  • BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted 0

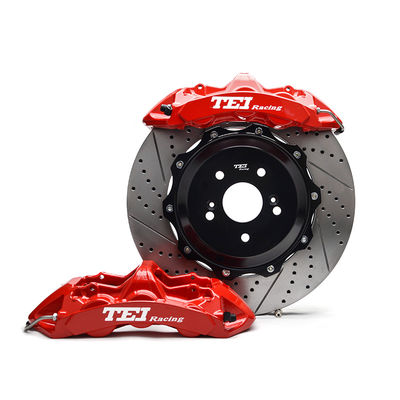

Features



TEI Racing Bolt-On Front Brake Kit

6 Piston Monoblock Aluminum Calipers

2-piece (378mm/405mm) Type 1 Slotted /Drilled Brake Rotors

Braided Stainless Steel Lines

Compatible with Factory Master Cylinder, ABS and Traction Control System





Brand TEI Craft One-piece Forged Body Caliper Length 289mm
Model S60 Caliper Material Aerial 6082 Aluminum Alloy Caliper Width 165mm
Pistons 6 POTS Piston Material Aluminum Alloy Caliper Height 88mm
Logo Carved Piston Diameter 38.1mm 31.8mm 28.6mm Caliper Weight 3.52kg/pcs



BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted 1



Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49

BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted 2





Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC

BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted 3


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted 4



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.





The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above



BBK For RAM Pickup Truck Big Brake Kit 20 Inch Wheel 405*34mm Rotor Drilled And Slotted 5





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.
