Chevrolet Big Brake Kit
>
BBK For Cruze 6 Piston Caliper With 355*32mm Rotor TEI Racing Big Brake Kit Chevrolet Cruze

BBK For Cruze 6 Piston Caliper With 355*32mm Rotor TEI Racing Big Brake Kit Chevrolet Cruze

Brand Name: TEI Racing
Model Number: P60S
MOQ: 1set
Packaging Details: 42*42*42cm Brand Box
Payment Terms: T/T, Western Union, MoneyGram Paypal
Detail Information
Material:
Aerial 6082 Aluminum Alloy
Pistons Quantity:
6 Piston
Piston Size:
38.1mm 31.8mm 27mm
Color:
Red Blue Yellow Black Silver Green
Weight:
32kg
Supply Ability:
300 sets per month
Highlight:

bbk brake kit

,

performance car parts

Product Description

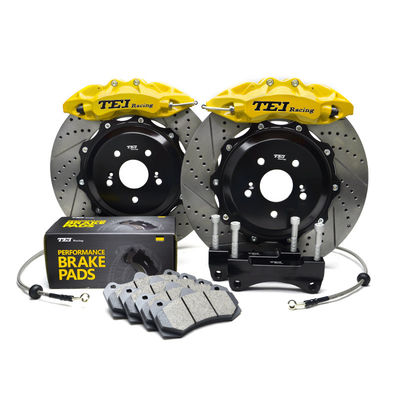

TEI Racing P60S 6piston Big Brake Kit for Performance Cars Chevrolet Cruze





2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads






ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.





BBK For Cruze 6 Piston Caliper With 355*32mm Rotor TEI Racing Big Brake Kit Chevrolet Cruze 0



We need to know the VIN of your car before placing the order .



So please contact our sales man via sales@teiracing.com





BBK For Cruze 6 Piston Caliper With 355*32mm Rotor TEI Racing Big Brake Kit Chevrolet Cruze 1

BBK For Cruze 6 Piston Caliper With 355*32mm Rotor TEI Racing Big Brake Kit Chevrolet Cruze 2BBK For Cruze 6 Piston Caliper With 355*32mm Rotor TEI Racing Big Brake Kit Chevrolet Cruze 3



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.
