Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines

1set
MOQ
Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines
Features Gallery Product Description Request A Quote
Features
Specifications
Car Model: Audi Q5 BBK
Wheel Size: 18inch 19inch 20inch
Material: Aerial 6082 Aluminum Alloy
Pistons Quantity: 6 Piston
Piston Size: 38.1mm 31.8mm 27mm
Color: Red Blue Yellow Black Silver Green
Weight: 32kg
High Light:

bbk kit

,

big brake conversion kits

Basic Infomation
Place of Origin: China
Brand Name: TEI Racing
Model Number: P60S
Payment & Shipping Terms
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 300 sets per month
Product Description

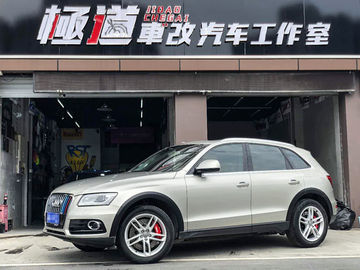

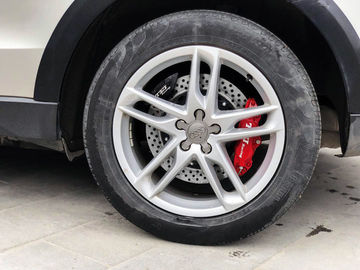

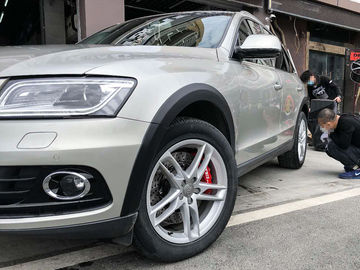

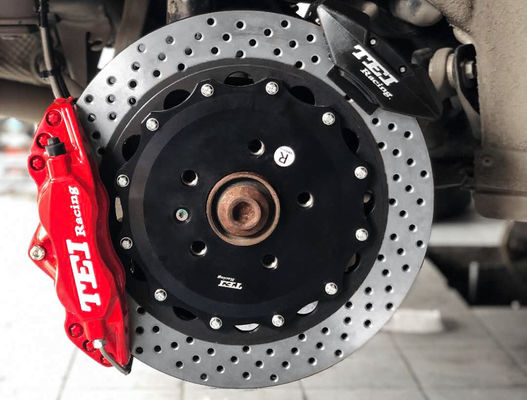

Audi Q5 installed P60S 6piston Big Brake Kit for Performance Cars





Audi AUDI Q5 Front (with OE Disc 320mm) 2008 >
Audi AUDI Q5 Front (with OE Disc 345mm) 2008 >
Audi AUDI Q7 4.2 V8 Tdi Front 2006 >
Audi AUDI Q7 Front 2007 >
Audi AUDI Q7 Front 2007 >
Audi AUDI Q7 Rear 2007 > 4



What's in the Box

Passenger Side Front TEI Racing Six-Piston Caliper

Driver Side Front TEI Racing Six-Piston Caliper

2-piece TEI Racing Front Rotors

Braided Stainless Steel Brake Lines

Brake Pads (one set, for both calipers)

Mounting Brackets

Installation Hardware



Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines 0Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines 1



Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.











Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines 2Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines 3Audi Q5 BBK Big Brake Kit 6piston With 355*32mm Rotor With Two Brake Lines 4



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.
