Ford Big Brake Kit
>
Ford Explore Upgrade BBK Big Brake Kit 6 Piston Caliper For Front And 4 piston Caliper For Rear

Ford Explore Upgrade BBK Big Brake Kit 6 Piston Caliper For Front And 4 piston Caliper For Rear

Brand Name: TEI Racing
Model Number: S60
MOQ: 1
Packaging Details: 42*42*42cm Brand Box
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Car Modle:
Ford Explore BBK
Wheel Size:
19inch 20inch
Piston:
6pistons
Piston Diameter:
38.1mm 31.8mm 28.6mm
Disc Size:
378*32mm 405*34mm
Weight:
46kg Front +40kg Rear
Material:
Aerial 6082 Aluminum Alloy
Color:
Black Red Yellow Green Blue Silver
Supply Ability:
200 kits per month
Highlight:

6082 BBK Big Brake Kit

,

28.6mm BBK Big Brake Kit

,

40kg rear 6 Piston Caliper

Product Description





Ford Explore Upgrade BBK Big Brake Kit 6 Piston Caliper For Front And 4 piston Caliper For Rear 0











Brand TEI Craft One-piece Forged Body Caliper Length 289mm
Model S60 Caliper Material Aerial 6082 Aluminum Alloy Caliper Width 165mm
Pistons 6 POTS Piston Material Aluminum Alloy Caliper Height 88mm
Logo Carved Piston Diameter 38.1mm 31.8mm 28.6mm Caliper Weight 3.52kg/pcs

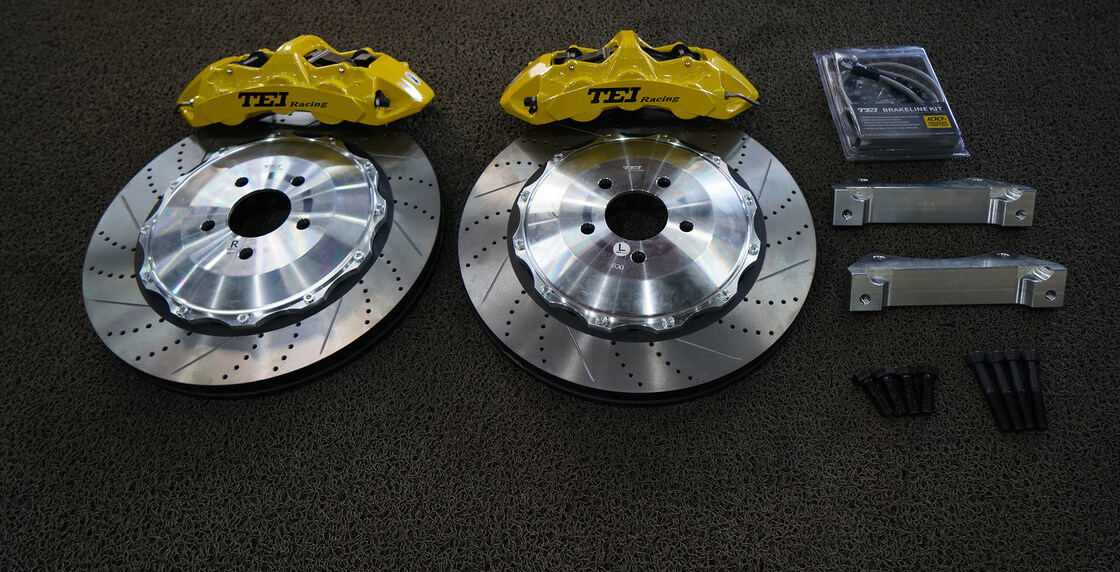

What's in the Box

Passenger Side Front TEI Racing Six-Piston Caliper

Driver Side Front TEI Racing Six-Piston Caliper

2-piece TEI Racing Front Rotors

Braided Stainless Steel Brake Lines

Brake Pads (one set, for both calipers)

Mounting Brackets

Installation Hardware















Features



TEI Racing Bolt-On Front Brake Kit

6 Piston Monoblock Aluminum Calipers

2-piece (378mm/405mm) Type 1 Slotted /Drilled Brake Rotors

Braided Stainless Steel Lines

Compatible with Factory Master Cylinder, ABS and Traction Control System









Ford Explore Upgrade BBK Big Brake Kit 6 Piston Caliper For Front And 4 piston Caliper For Rear 1



Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy

Ford Explore Upgrade BBK Big Brake Kit 6 Piston Caliper For Front And 4 piston Caliper For Rear 2


ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.



Ford Explore Upgrade BBK Big Brake Kit 6 Piston Caliper For Front And 4 piston Caliper For Rear 3
