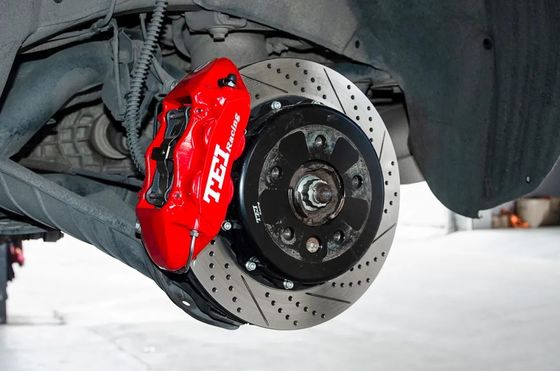

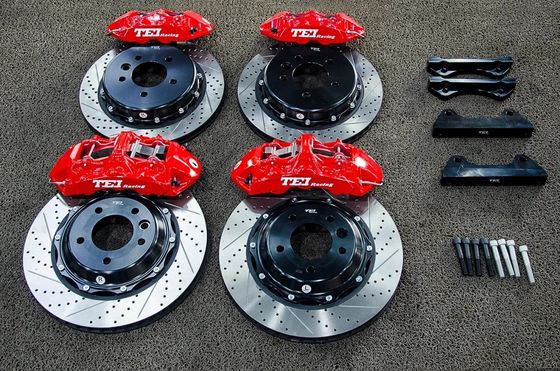

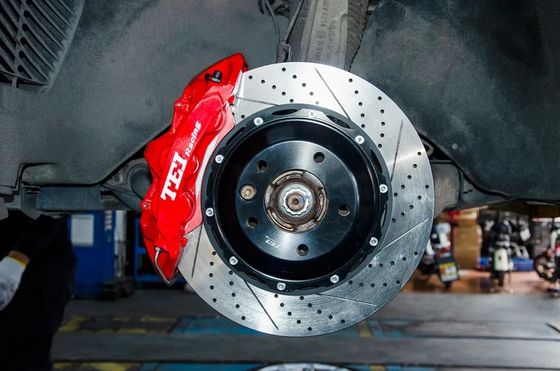

| Product Type | TEI S60 Front Brake Caliper with 355/378x32mm 405x34mm Disc Rotor | ||
| P60ES Caliper | |||
| Manufacuring Craft | By Forging+CNC | Caliper Length | 289mm |
| Caliper Material | Aerial | Caliper Width | 165mm |
| Piston Material | Alumium Alloy | Caliper Height | 88mm |
| Piston Area | 50.06c㎡ | Caliper Weight | 3.52Kg/pcs |
| Fitting Wheel Size | 18/19/20" | Fitting Disc Size | 355/378/380cm |
| Color Finish Treatment | High-temperature Baking Coating | ||
| Optional Colors | Red/Yellow/Blue/Green/Black/Customized as required | ||
| Brake Disc Rotor(Disc+Center+hub) | |||
| Disc Material | High-carbon iron | Center hub Material | Aerial aluminum alloy |
| Disc craft | By casting | Center hub craft | By CNC manufacturing |
| Plane bounce | ＜0.03mm | Center hub color | Black/Silver or customized as required |
| Brackets + Steel hose+Brake Pads | |||
| Bracket material | Aerial aluminum alloy | Bracket craft | By CNC manufacturing |
| Bracket color | Black/Silver/customized | Brake house material | Steel wire outside and special rubber inside |
| Brake pads material | Ceramic+graphite | Heat-resistant | 0-500 degree |
| Friction Coefficient | 0.4 | Brake Pad Size | 132x67x18mm |
| Product Type | TEI S40 Front Brake Caliper with 345/355/378x32mm Disc Rotor | ||
| P60ES Caliper | |||
| Manufacuring Craft | By Forging+CNC | Caliper Length | 274mm |
| Caliper Material | Aerial | Caliper Width | 165mm |
| Piston Material | Alumium Alloy | Caliper Height | 75mm |
| Piston Area | 50.06c㎡ | Caliper Weight | 2.74Kg/pcs |
| Fitting Wheel Size | 18/19/20" | Fitting Disc Size | 355/378/380cm |
| Color Finish Treatment | High-temperature Baking Coating | ||
| Optional Colors | Red/Yellow/Blue/Green/Black/Customized as required | ||
| Brake Disc Rotor(Disc+Center+hub) | |||
| Disc Material | High-carbon iron | Center hub Material | Aerial aluminum alloy |
| Disc craft | By casting | Center hub craft | By CNC manufacturing |
| Plane bounce | ＜0.03mm | Center hub color | Black/Silver or customized as required |
| Brackets + Steel hose+Brake Pads | |||
| Bracket material | Aerial aluminum alloy | Bracket craft | By CNC manufacturing |
| Bracket color | Black/Silver/customized | Brake house material | Steel wire outside and special rubber inside |
| Brake pads material | Ceramic+graphite | Heat-resistant | 0-500 degree |
| Friction Coefficient | 0.4 | Brake Pad Size | 132x67x18mm |
