Front BBK Audi Big Brake Kit For A4 B9 19 Inch 6 Piston Caliper Brake Kit With 378*32 Mm Rotor

Product Details:
Place of Origin: China
Brand Name: TEI Racing
Certification: China National Inspection Agency
Model Number: P60NS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1070-1140 USD
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000 kits per month

Detail Information

Car Model: Audi A4B9 Material: Aerial 6082 Aluminum Alloy
Piston: 6 PISTON Piston Diameter: 38.1mm 31.8mm
Disc Size: 355/378*32 MM Weight: 40kg For Full Kit
Color: Black Red Yellow Green Blue Silver
High Light:

6 Piston Audi Big Brake Kit

,

Front BBK Audi Big Brake Kit

Product Description

Front High Performance BBK For Audi A4L 18 Inch 4 piston Caliper Brake Kit With 355*28 mm Rotor

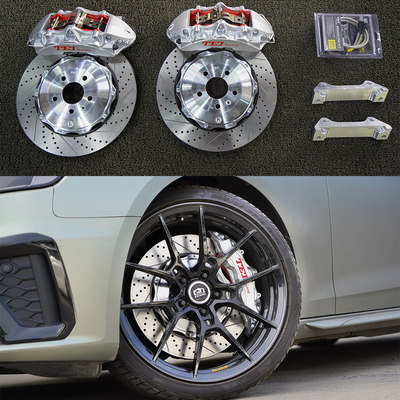

1 Full kit included



2 x Calipers

2 x Discs

2 x Brake Lines

4 x Brake Pads

2 x Adapters( Brackets)

Hardwares



Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


ROTOR SPECS:

Two-piece floating rotor with 6061-T6 aerospace grade alloy cap.
It comes out fully balanced
Rotor rings are made of FC30 cast iron with corrosion resistant coating.
Drilling/slotting/drilling and slotting rotor rings are available at no additional cost.
(We recommend drilling in the streets and grooving in the tracks and races)
Curved blade ventilation to achieve the best cooling effect.
The fully floating rotor uses floating hardware (detachable and reconstructable) with anti-knock system.
It provides a lower tendency to warp, less drag and wear because the rotor ring itself is centered with the bearing bush.
Only for 330mm and larger rotors.
Semi-floating rotors are bolted instead, and the rotors are attached to the cap.
Custom anodized rotor cap color.

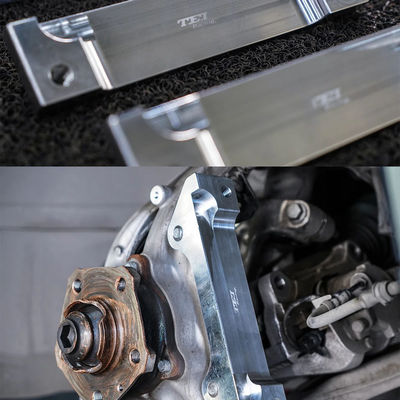

Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.

Front BBK Audi Big Brake Kit For A4 B9 19 Inch 6 Piston Caliper Brake Kit With 378*32 Mm Rotor 0Front BBK Audi Big Brake Kit For A4 B9 19 Inch 6 Piston Caliper Brake Kit With 378*32 Mm Rotor 1Front BBK Audi Big Brake Kit For A4 B9 19 Inch 6 Piston Caliper Brake Kit With 378*32 Mm Rotor 2Front BBK Audi Big Brake Kit For A4 B9 19 Inch 6 Piston Caliper Brake Kit With 378*32 Mm Rotor 3Front BBK Audi Big Brake Kit For A4 B9 19 Inch 6 Piston Caliper Brake Kit With 378*32 Mm Rotor 4

WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.

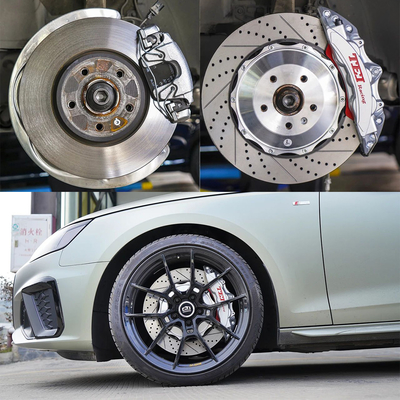

The number of cans of the caliper will also play a role in the pressure exerted on the liner to make the contact on the rotor as good as possible. To mount the calipers on your original chassis, TEI Racing provides caliper holders to position the calipers with your new braking system, providing the perfect setup for your car's braking system.


Go fast, stop fast. TEI Racing Grand Brake Kit gives you great braking power when you need it most. TEI Racing brake kits are available for both front and rear brakes, with rotor sizes ranging from 285mm to 405mm drilled or grooved or drilled and grooved, 2-6 piston forged integral aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads and all hardware are used for direct bolt mounting without modification.


The TEI Racing Monoblock calipers are precision-machined from aircraft-quality billet aluminium and are fitted with heavy-duty aluminium pistons fitted with heat-resistant seals. These high performance calipers are able to take advantage of lightweight construction while significantly improving braking performance. The rotors in the TEI Racing Grand Brake kit have a two-piece design with drilled or slotted surfaces that help minimize wear and heat dissipation during the most extreme braking conditions.



TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.
