Brand Name: | TEI Racing |
Model Number: | P40NS+ |
MOQ: | 1set |
Packaging Details: | 42*42*42cm Brand Box |
Payment Terms: | T/T, Western Union, MoneyGram Paypal |
P40NS+ 4 PISTON CALIPER FRONT BRAKE KIT WITH 355 MM ROTOR
Product Type | P40NS+ Front Brake Kit |
Piston Quality | 4 Piston |
Piston Area | 49.56 cm2 |
Piston Material | Alumium Alloy |
Caliper Parameter | 294 X 152 X 83.8 MM |
Caliper Weight | 3.2 KG/pcs |
Caliper Material | Aerial |
Manufacuring Craft | By Forging+CNC |
Color Finish Treatment | High-temperature Baking Coating |
Optional Colors | Red/Yellow/Sliver/Customized as required |
Fitting Wheel Size | 18 Inch |
Fitting Disc Size | 355 X 28 mm |
Brake Disc Rotor(Disc+Center Hub) | |
Disc Material | High-Carbon Iron |
Disc Craft | By casting |
Plane Bounce | <0.03 mm |
Center Hub Material | Aerial aluminum alloy |
Center Hub Craft | By CNC manufacturing |
Center Hub Color | Black/Sliver or Customized as required |
Adapter+Brake line+Brake pads | |
Adapter Material | Aerial aluminum alloy |
Adapter Craft | By CNC manufacturing |
Adapter Color | Black/Sliver/Customized |
Brake Pad Material | Ceramic+Graphite |
Brake Pad Friction Coefficient | 0.38-0.42(Ceramic)/0.42-0.48(Metal) |
Brake Pad Size | 131.8 X 67 X 17 mm |
Brakeline Material | Steel wire outside and special rubber inside |
Heat-Resistant | 0-700 Degree |

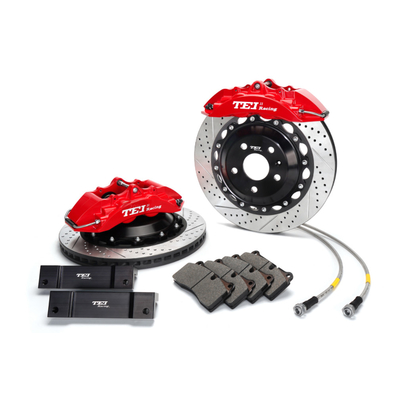

2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads
Tei Racing launched the fourth -generation new P -series brake kit, which
has carried out a broad -scale innovation. The sales volume has risen all
the way, which is loved and recognized by the majority of car owners. After
updating the NS version, the foot feel is more sensitive, radical, and sports,
optimize the matching of product spare parts, reduce the chance of the
incidence of noise to achieve the best performance and comfort.
P40ns+ four -piston brake caliper kit to upgrade multiple aspects;
The new internal design structure, large and small piston arrangement
design, making braking foot feel, more sensitive, radical, exercise;
To ensure that each brake can give the driver's driving control experience calmly and confidently.
The division forging process is processed by precision CNC. At the same time, it
has excellent braking and heat dissipation performance, and the weighing of the
streamlined caliper is as low as 3.2kg.
The friction area of the brake pads has been upgraded from 48mm in the
previous generation to 52mm. The streets are mute and comfortable braking
skin, and high -end ceramic materials have achieved a good balance in noise,
dust, and performance, performing excellent performance. At the same time,
the brake pads alarm line slot is added, which is more compatible with the original factory.

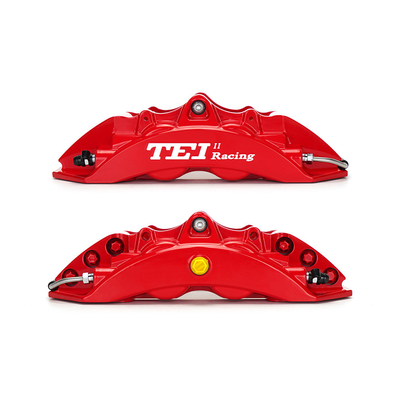

The appearance of the calipers adopts a new high -temperature paint process, making the paint surface more bright and lasting. Even in harsh environments, there will be no fading or fading. At the same time, the logo adopts relief design, highlighting the brand's uniqueness.

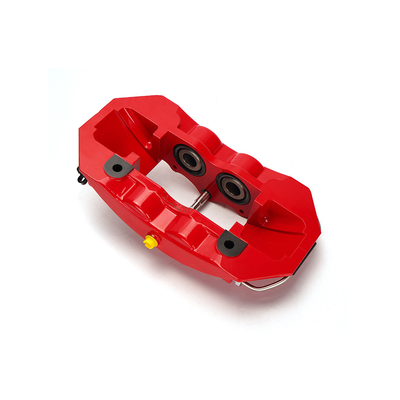

The improvement part of the more attention is the piston. The interior uses
dual oil seal and delays the external dust cover structure, which enhances
the sealing and greatly reduces the chance of the brakes in the piston work
parts in daily use. Longer. The size of the piston is 38mm*2 /41mm*2 with
a total area of 49.56cm².

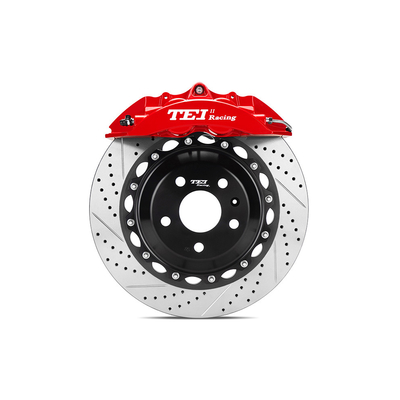

The size of the brake disk provides a 355 × 28mm option to solve the problem
of small piston fuel supply in most 18 -inch wheels. With a large -sized brake
disc to improve the brake arm, the visual effect is more impactful.
Provide 6 color options
![]() |
