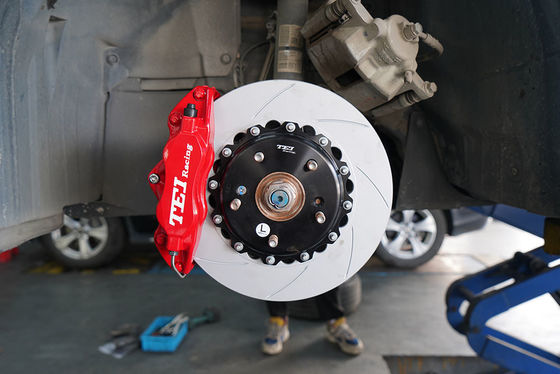

P40S 4piston Forged Caliperw With 330*28mm Rotor For Honda Civic 17inch Wheel
2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads
Product Detail
| Brand | TEI | Craft | One-piece Forged Body | Caliper Length | 274mm |
| Model | S40 | Caliper Material | Aerial 6082 Aluminum Alloy | Caliper Width | 165mm |
| Pistons | 4 POTS | Piston Material | Aluminum Alloy | Caliper Height | 75mm |
| Logo | carved | Piston Diameter | 38.1mm 29.5mm | Caliper Weight | 2.76kg/pcs |
Feature:
Piston material: Aluminum Alloy
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.
Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.
| TEI Racing Rotor Size | Minimum Inch Wheel Size |
| 285*24mm | 15inch wheels |
| 300*24mm | 16inch wheels or above |
| 300*28mm | 17inch wheels or above |
| 330*28mm | 17inch wheels or above |
| 345*28mm | 18inch wheels or above |
| 355*32mm | 18inch wheels or above |
| 378*32mm | 19inch wheels or above |
| 405*34mm | 20inch wheels or above |
Installation Info
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
