Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch

1set
MOQ
850-950USD per set
Price
Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aerial 6082 Aluminum Alloy
Pistons Quantity: 4 Piston
Piston Size: 41.3mm 38.1mm
Color: Red Blue Yellow Black Silver Green
Weight: 28kg
Car Model: Mini Cooper R56
Wheel: 17inch 18inch 19inch
Disc Size: 330mm 345mm 355mm
High Light:

4 Piston BBK Brake Kit

,

R55 BBK Brake Kit

,

345mm Rotor Front Wheel

Basic Infomation
Place of Origin: China
Brand Name: TEI Racing
Model Number: P40NS
Payment & Shipping Terms
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 300 sets per month
Product Description

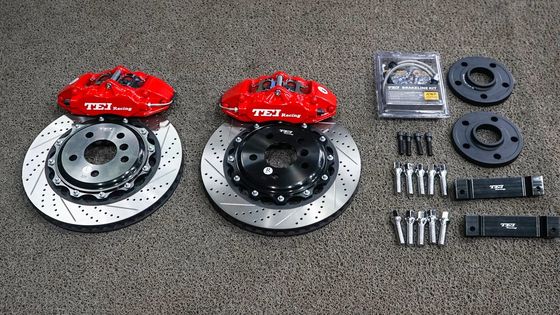

TEI Racing P40NS 4piston Big Brake Kit  For Front Wheel







2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads





Radial mounting provides secure and accurate installation of the forged  four piston caliper with large diameter rotors for the MINI Cooper platform.

These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines.

Kits are engineered specific for the MINI Cooper to maintain full compatibility with the OE master cylinder output and factory ABS functions.

11.75 must use 15 inch wheel or bigger

12.19 must use 15 inch wheel or bigger

12.88 must use 17 inch wheel or bigger

Package size:42*42*42cm


Piston material: Aluminum Alloy


Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.





Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch 0Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch 1Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch 2

Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch 3Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch 4Mini R56 R53 R55 4 Piston BBK Brake Kit 300mm 330mm 345mm Rotor Front Wheel 16 Inch 17 Inch 18 Inch 5
