Audi RS4 RS5 RS6 BBK Big Brake Kit 6 Piston Forged Two Pieces Caliper 19 Inch Wheel Front

1
MOQ
1150-1250USD
Price
Audi RS4 RS5 RS6 BBK Big Brake Kit  6 Piston Forged Two Pieces Caliper 19 Inch Wheel Front
Features Gallery Product Description Request A Quote
Features
Specifications
Car Model: Audi A6
Wheel Size: 19inch 20inch
Material: Aerial 6082 Aluminum Alloy
Disc Size: 355*32mm
Piston: 6pistons
Piston Diameter: 38.1mm 31.8mm 28.6mm
Weight: 42kg For Full Kit
Color: Black Red Yellow Green Blue Silver
High Light:

RS6 BBK Big Brake Kit

,

RS4 RS5 Big Brake Kit

,

6082 Forged Two Pieces Caliper

Basic Infomation
Place of Origin: China
Brand Name: TEI Racing
Model Number: P60NS
Payment & Shipping Terms
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 kits per month
Product Description

Audi RS4  RS5  RS6 BBK Big Brake Kit 6 Piston Forged Two-Pieces Caliper 19 Inch Wheel Front



Audi AUDI RS4 Front (B5) 2000 2002
Audi AUDI RS4 Front (B7) 2006 2008
Audi AUDI RS4 Front (B7) 2006 2008
Audi AUDI RS4 Front (B8) 2013 >
Audi AUDI RS4 Front (B8) (Excluding Ceramic Brake) 2013 >
Audi AUDI RS4 Rear (B5) 2000 2002
Audi AUDI RS4 Rear (B7) 2006 2008
Audi AUDI RS4 Rear (B8) 2011 >
Audi AUDI RS5 Front (B8) 2011 >
Audi AUDI RS5 Front (B8) (Excluding Ceramic Brake) 2011 >
Audi AUDI RS5 Rear (B8) 2011 >
Audi AUDI RS6 Front (excluding 420mm disc Audi Ceramic) 2008 >

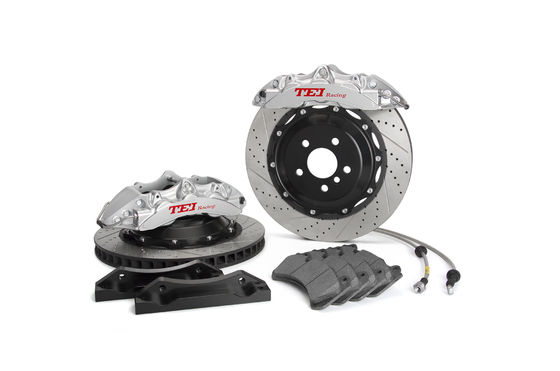

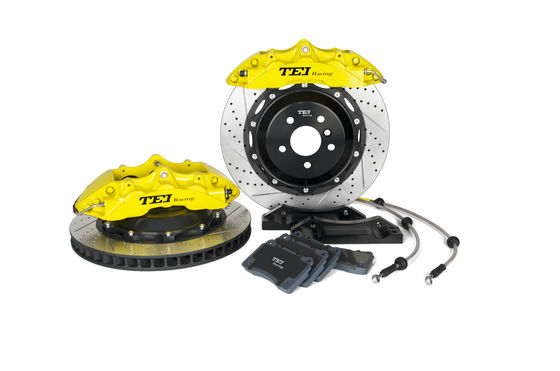

What's in the Box

Passenger Side Front TEI Racing Four-Piston Caliper

Driver Side Front TEI Racing Four-Piston Caliper

2-piece TEI Racing Front Rotors

Braided Stainless Steel Brake Lines

Brake Pads (one set, for both calipers)

Mounting Brackets

Installation Hardware





Audi RS4 RS5 RS6 BBK Big Brake Kit  6 Piston Forged Two Pieces Caliper 19 Inch Wheel Front 0



Features



TEI Racing Bolt-On Front Brake Kit

6 Piston Monoblock Aluminum Calipers

2-piece (378mm/405mm) Type 1 Slotted /Drilled Brake Rotors

Braided Stainless Steel Lines

Compatible with Factory Master Cylinder, ABS and Traction Control System







Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.





TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.
