BMW Big Brake Kit
>
BBK For BMW 2 Series 3 Series 3 Series 4 Series 5 Series 6 Series 7 Series 8 Series 20 Inch Wheel Front And Rear

BBK For BMW 2 Series 3 Series 3 Series 4 Series 5 Series 6 Series 7 Series 8 Series 20 Inch Wheel Front And Rear

Brand Name: TEI Racing
Model Number: S60+S40
MOQ: 1
Packaging Details: 42*42*42cm Brand Box
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Car Model:
BMW 2 Series 3Series 3Series 4Series 5Series 6Series 7Series 8Series
Car Of Year:
2000-2021
Disc Size:
378*32mm 405*34mm
Piston Diameter:
38.1mm 31.8mm 28.6mm
Piston:
6pistons
Wheel Size:
18inch 19inch 20inch
Weight:
46kg Front +40kg Rear
Color:
Red Blue Yellow Black Silver Green
Supply Ability:
200 kits per month
Highlight:

28.6mm BBK BMW Big Brake Kit

,

40kg rear BMW Big Brake Kit

Product Description

BMW 2 Series 3Series 3Series 4Series 5Series 6Series 7Series 8Series

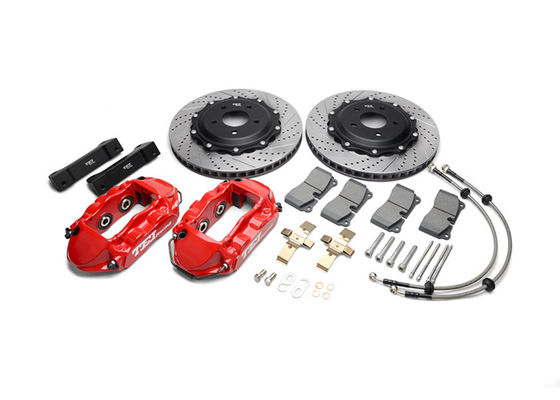

What's in the Box

Passenger Side Front TEI Racing Six-Piston Caliper

Driver Side Front TEI Racing Six-Piston Caliper

2-piece TEI Racing Front Rotors

Braided Stainless Steel Brake Lines

Brake Pads (one set, for both calipers)

Mounting Brackets

Installation Hardware





BBK For BMW 2 Series 3 Series 3 Series 4 Series 5 Series 6 Series 7 Series 8 Series 20 Inch Wheel  Front And Rear 0







Package size:42*42*42cm


Piston material: Aluminum Alloy


Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color

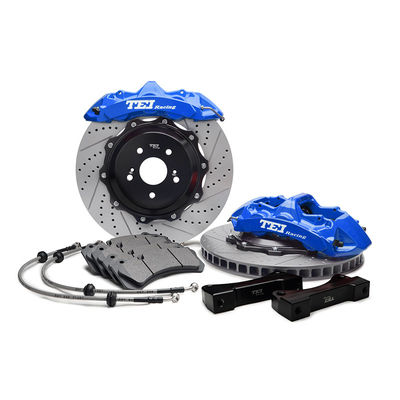

BBK For BMW 2 Series 3 Series 3 Series 4 Series 5 Series 6 Series 7 Series 8 Series 20 Inch Wheel  Front And Rear 1


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors

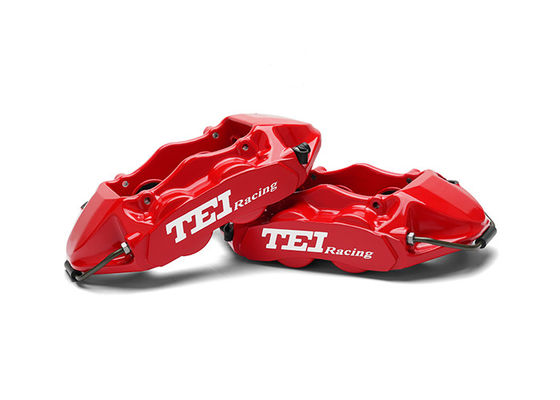

.BBK For BMW 2 Series 3 Series 3 Series 4 Series 5 Series 6 Series 7 Series 8 Series 20 Inch Wheel  Front And Rear 2



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.
