|Place of Origin:||China|
|Brand Name:||TEI Racing|
|Certification:||China National Inspection Agency|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||42*42*42cm Brand Box|
|Payment Terms:||T/T, Western Union, MoneyGram Paypal|
|Supply Ability:||2000 sets per month|
|Material:||Aerial 6082 Aluminum Alloy||Pistons Quantity:||6 Piston|
|Piston Size:||52.41 CM2||Color:||Reb Blue Yellow Black Silver Green|
|Weight:||40 KG||Disc Size:||355/378*28 MM DISC|
|Wheel Size:||18inch 19inch 20inch|
6 Piston Caliper Rotor Brake Kit,
Rotor Brake Kit Drilled
TEI Racing P60NS 6piston Big Brake Kit for Performance Cars FRONT wheel
|Product Type||P60NS Front Brake Kit|
|Piston Quality||6 Piston|
|Piston Area||52.41 cm2|
|Piston Material||6061 Alumium Alloy|
|Caliper Parameter||350 X 160 X 96 MM|
|Caliper Weight||3.96 KG/pcs|
|Manufacuring Craft||By Forging+CNC|
|Color Finish Treatment||High-temperature Baking Coating|
|Optional Colors||Red/Yellow/Sliver/Customized as required|
|Fitting Wheel Size||18/19 Inch|
|Fitting Disc Size||355/378 X 32 mm|
|Brake Disc Rotor(Disc+Center Hub)|
|Disc Material||High-Carbon Iron|
|Disc Craft||By casting|
|Plane Bounce||<0.03 mm|
|Center Hub Material||Aerial aluminum alloy|
|Center Hub Craft||By CNC manufacturing|
|Center Hub Color||Black/Sliver or Customized as required|
|Adapter+Brake line+Brake pads|
|Adapter Material||Aerial aluminum alloy|
|Adapter Craft||By CNC manufacturing|
|Brake Pad Material||Ceramic+Graphite|
|Brake Pad Friction Coefficient||0.38-0.42(Ceramic)/0.42-0.48(Metal)|
|Brake Pad Size||190 X 87.5 X 16.6 mm|
|Brakeline Material||Steel wire outside and special rubber inside|

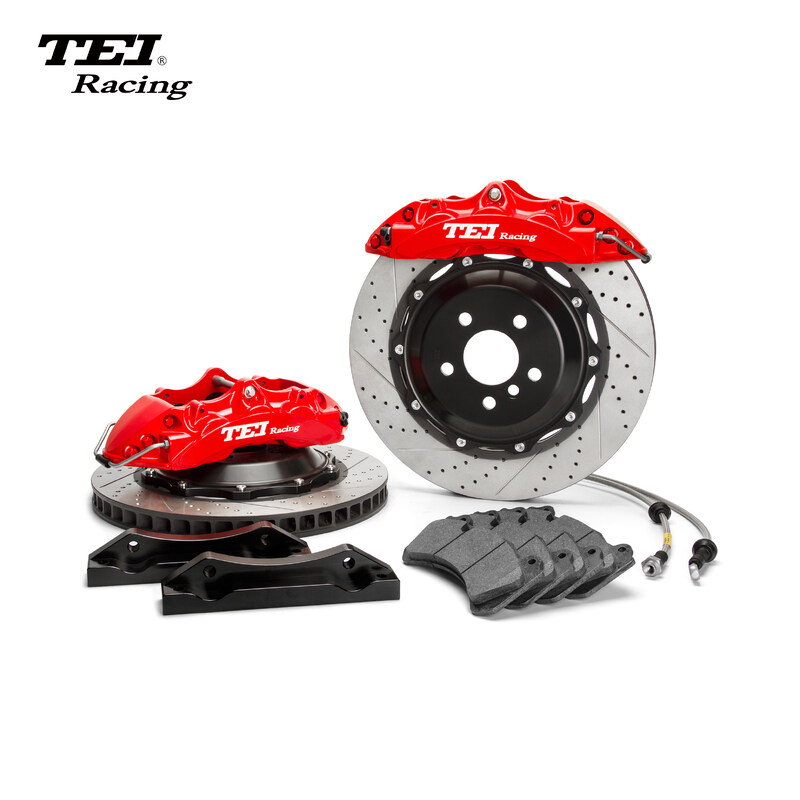

2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Center hub( hat)
4x Brake pads
The P -series brake kit has been loved by the majority of car owners since
the introduction of domestic brakes. Tei Racing has done a better product
experience in domestic riders. Therefore, the official third -generation upgrade
model P60NS has done A lot of upgrades, comprehensively improving car
The new P60NS uses the third -generation new design language, making
it larger and more visually impact. The shape is simple and the lines are
more prominent. The matching area of the brake pads increases by 20%
compared to the previous generation of the P series, and the brake performance
improves 13%, effectively shorten the brake braking distance!
This caliper requires 18 inches and above wheels to install. The corresponding disc size is:
355*32mm and 378*32mm.

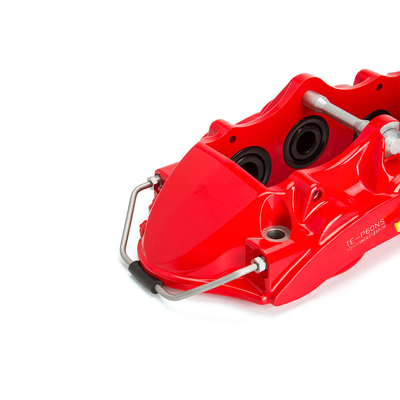

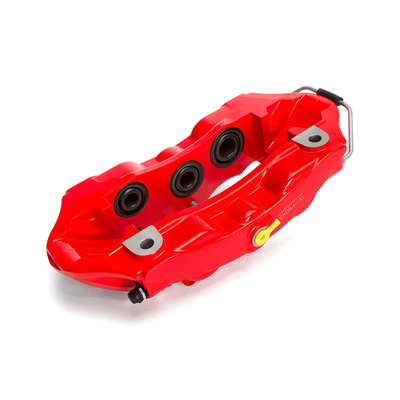

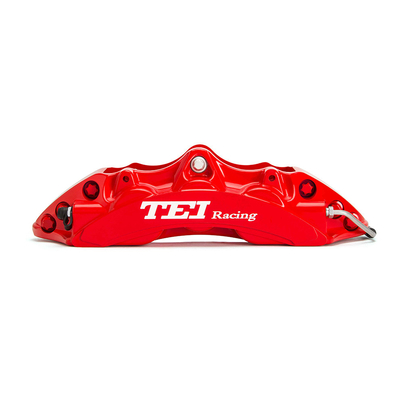

The new P60NS has made a lot of improvements in the appearance of caliper.
First of all, the new spraying process is used to make the paint surface brighter.
At the same time, the spray -plastic paint process can keep the color longer.
Similarly, in terms of materials, the high -strength 6082 aerospace aluminum
alloy T6 thermal treatment process forging is used. Under the coaxial processing
of high -precision CNC, the two components are accurately combined into a
two -piece forging caliper, which greatly reduces it. The vibration generated
during braking improves the durability and safety of the product.
The improvement part of the more noteworthy is the piston. The interior not
only uses dual oil sealing, but also uses external dust covers. While enhancing
the sealing, it greatly reduces the chance of braking in the piston work parts in
daily use in daily use, reducing the maintenance cost of the later period.
The piston area is 52.41cm².
The overall lightweight hollow design, the weight of a single calipers is about
3.96kg, which reduces the weight of the spring while ensuring the strength.
The design of the oil circuit in the bottom of the oil pipe and calipers has
also been improved. The design is more linear! Real the effect of braking
control that you want.
Lighter, stronger, safer
Metal the highest criterion without compromise on every detail ...
