China TEI Racing Big Brake Kit manufacturer

A Class W177 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston Brake Kit Auto Brake System

Product Details:
Place of Origin: China
Brand Name: TEI-RACING
Certification: China National Inspection Agency
Model Number: P60ES
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 700 USD/SET
Packaging Details: Package: 1.Each part is wrapped by EPE foam inside, carton box outside ; 2.Wooden frame is available as required3.Box size:42x42x42cm
Delivery Time: 10-15 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram and so on
Supply Ability: 10000 sets per month

Detail Information

Caliper Model: P60ES Caliper Material: 6061 Aluminum Alloy
Rotor Material: High Carbon Alloy Package Weight: 35 Kg
Shipment Way: Express.air Or Sea Payment Way: Bank Transfer,Western Union Or Paypel
High Light:

W177 Mercedes Big Brake Kit

,

6 Piston Mercedes Big Brake Kit

Product Description

High Performance BBK For Mercedes-Benz A Class W177 18 Inch Car Rim Front 6 piston brake kit auto brake system



Mercedes-Benz A Class W177 2018+ year
It can be installed our front brake kit
Normal handbrake or Electric handbrake
The original wheels do not need to add Spacers.

(If you are not sure,you can provide your car ET value and we can check it for you)





Orginal Brake Rotor Information

Front:



Front Original Rotor Information
Brake Rotor model 21278
Rotor Diameter 350 mm
Rotor Hat Diameter 112 mm
Central Hole Diameter 67 mm
Disc Thickness 30 mm
Minimum Disc Thickness 28 mm
Total Height 51 mm
Number of Positioning Holes 5
Disc type Ventilation

A Class W177 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston Brake Kit Auto Brake System 0

Rear Original Rotor Information
Brake Rotor model 12730
Rotor Diameter 295 mm
Rotor Hat Diameter 112 mm
Central Hole Diameter 67 mm
Disc Thickness 12 mm
Minimum Disc Thickness 10 mm
Total Height 42.5 mm
Number of Positioning Holes 5
Disc type Solid

A Class W177 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston Brake Kit Auto Brake System 1

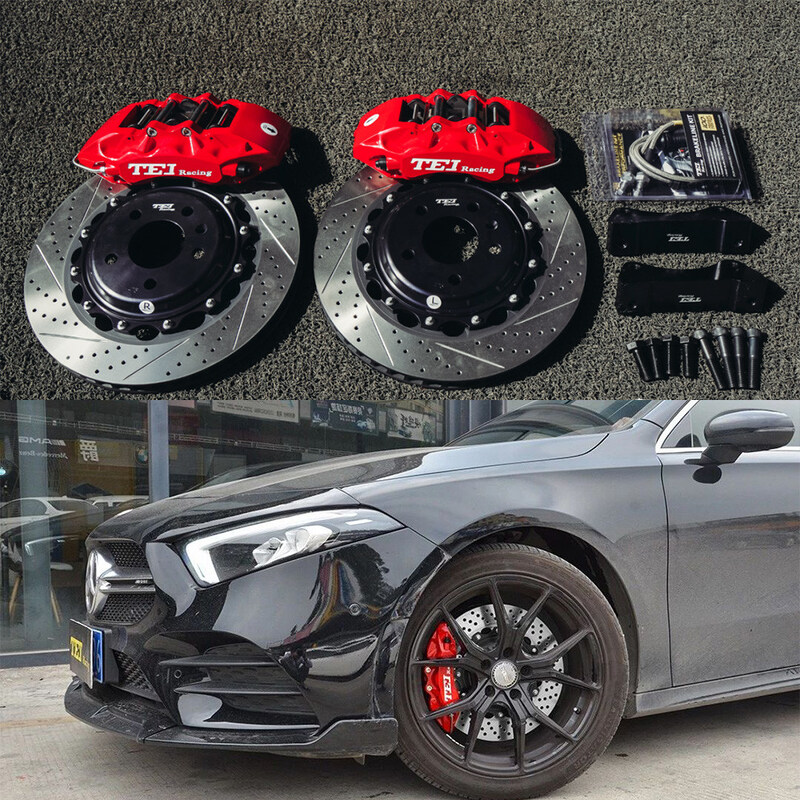

Installation Case



Installation Case Brake Kit Information
Car Model Mercedes-Benz A Class W177 2018+ year
  Front Rear
TEI Caliper Model P60S /
Caliper Color Red /
Rotor Size 355X32 MM /
Rotor Style DRILLED /
Bolt Type FIXED /
Brake Pad Type SPPA /

Noted:1.You can click the caliper model to check the products information.For example,You can click P60S to check the P60S brake kit information.
2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad
SSS,XSS,MSS=Racing Metal Brake Pad

3.P60S is upgraded to P60ES



A Class W177 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston Brake Kit Auto Brake System 2A Class W177 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston Brake Kit Auto Brake System 3A Class W177 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston Brake Kit Auto Brake System 4

FAQ



Q1:Is your company a manufacturer?

A1:Yes,we are the manufacturer.



Q2:How do I know if your product is suitable for my car?

A2:You can tell me your car information to our sales and we will check the fitment for you.Because there are many factors involved in determining whether our product is suitable for your car.

Because our company have many car tuning shops in China and we have installed many car models.So we can find the parameters of your car by checking our database, and then produce a brake kit that suits your car.



Q3:What if my car model is very rare?

A3:We have very professional data acquisition engineers and CNC machining engineers.
We will send you a file of car data collection.
Then you provide us with the data according to the documents, and we can also make products suitable for your car.



Q4:How do I know if I need to add spcaers when I install your brake kit?

A4:You can tell us your car rim parameter and we check it for you.Normally,if your rim ET value is more than 38,you need to add the spacers.



Q5:After payment, when can I get the brake kit?

A5:For normal order,we need to take about 5-7 days to produce your brake kit.For the customzied order,we need to take about 10-15 days to finish the production.

As for the shipment time,7-12 days by express/25-45 days by sea transportation/5-15 days by air/25-35 days by train

If you dont have logistic agent in China,you can tell us your address and we check the shipment for you.



Q6:How can I pay?

A6:Bank Transfer,Paypel or Western Union.We also have online store on Alibaba or Aliexpress.You also can place the order by them.
