BMW Big Brake Kit
>
BBK For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor

BBK For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor

Brand Name: TEI Racing
Model Number: S60
MOQ: 1
Packaging Details: 42*42*42mm Brand Box
Payment Terms: T/T, Western Union, MoneyGram Paypal
Detail Information
Car Model:
BMW X5
Material:
Aerial 6082 Aluminum Alloy
Color:
Yellow
Disc Material:
High Carbon Iron
Weight:
46kg +40kg
Front Kit:
6psiton
Rear Kit:
4piston
Disc Size Front:
405*34mm
Disc Size Rear:
378*28
Supply Ability:
200 sets per month
Highlight:

tei racing big brake kit

,

bbk brake kit

Product Description

Big Brake Kit For BMW X5 20inch wheel brake sytem brake parts calipers





Front big brake kit included:

2x Big Brake Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads



Rear big brake kit included:

2x Big Brake Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads

BBK  For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor 0

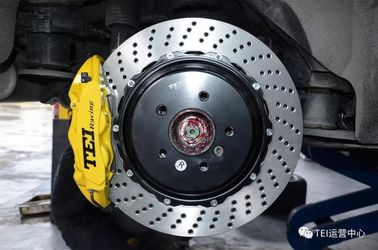

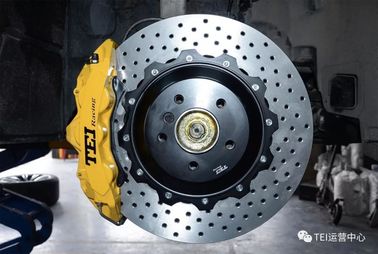

Big Brake Kit S60 6piston with 405*34mm rotor Installed on BMW X5  20inch Pictures Show As Below  Front Wheel

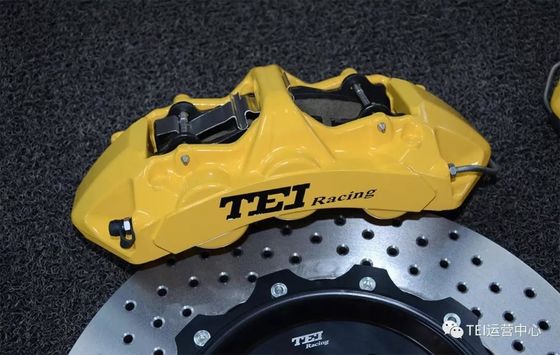

Big Brake Kit S60 6piston
Brand TEI Craft One-piece Forged Body Caliper Length 289mm
Model S60 Caliper Material Aerial 6082 Aluminum Alloy Caliper Width 165mm
Pistons 6 POTS Piston Material Aluminum Alloy Caliper Height 88mm
Logo Carved Piston Diameter 38.1mm 31.8mm 28.6mm Caliper Weight 3.52kg/pcs




BBK  For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor 1BBK  For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor 2







Big Brake Kit S40 4piston with 378*28mm rotor
Brand TEI Craft One-piece Forged Body Caliper Length 274mm
Model S40 Caliper Material Aerial 6082 Aluminum Alloy Caliper Width 165mm
Pistons 4 POTS Piston Material Aluminum Alloy Caliper Height 75mm
Logo carved Piston Diameter 38.1mm 29.5mm Caliper Weight 2.76kg/pcs



BBK  For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor 3BBK  For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor 4BBK  For BMW X5 20 Inch Wheel Front And Rear 6piston Caliper 405*34mm Rotor 5

Package size:42*42*42cm


Piston material: Aluminum Alloy


Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy


ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.
