Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers

1
MOQ
1200USD
Price
Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers
Features Gallery Product Description Request A Quote
Features
Specifications
Car Model: Ford Mustang BBK
Year: 2010-2017
Disc Size: 355*32mm 378*32mm 405*34mm Rotor
Rear Disc: 380*28mm Rotor
Material: Aerial 6082 Aluminum Alloy
Piston: 4pistons
Piston Diameter: 38.1mm 29.5mm
Weight: 35kg
Color: Black Red Yellow Green Blue Silver
High Light:

Ford Mustang BBK Brake Kit

,

S40 BBK Brake Kit

,

S40 4 Piston Cable Caliper

Basic Infomation
Place of Origin: China
Brand Name: TEI Racing
Model Number: S40
Payment & Shipping Terms
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 7-15days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200 kits per month
Product Description

S40 4 Piston BBK Brake Kit For Ford Mustang and Cable Caliper For Rear Double calipers

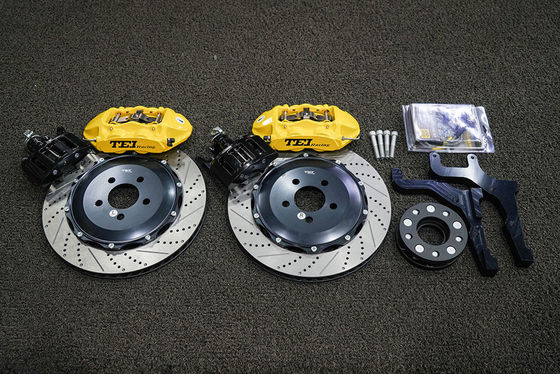

1 Full kit included



2 x Calipers

2 x Discs

2 x Brake Lines

4 x Brake Pads

2 x Adapters( Brackets)

Hardwares





Brand TEI Craft One-piece Forged Body Caliper Length 274mm
Model S40 Caliper Material Aerial 6082 Aluminum Alloy Caliper Width 165mm
Pistons 4 POTS Piston Material Aluminum Alloy Caliper Height 75mm
Logo carved Piston Diameter 38.1mm 29.5mm Caliper Weight 2.76kg/pcs



Feature:



Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49

Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 0



Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy

Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 1


Brackets/Adapters

Material: Aerial 6061 Aliminum Alloy
Craft: CNC



Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.





The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.





Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 2

Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 3Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 4Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 5Ford Mustang BBK Brake Kit S40 4 Piston Cable Caliper For Rear Double Calipers 6
