| Brand Name: | TEI Racing |
| Model Number: | S60+S40 |
| MOQ: | 1 |
| Packaging Details: | 42*42*42cm Brand Box |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |

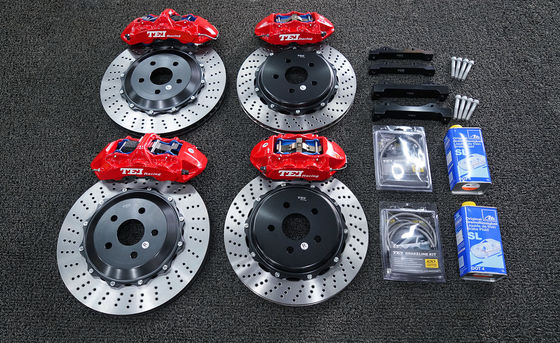

TEI Racing S60 6piston Big Brake Kit for Performance Cars Jeep Great Cherokee 20inch
Jeep Great Cherokee 2002-2007 year
It can be installed our front and rear brake kit
Minimum Rear Rotor Size is 355 mm
Normal handbrake
The original wheels do need to add 20 mm Spacers.
(If you are not sure,you can provide your car ET value and we can check it for you)
Orginal Brake Rotor Information
Front:
| Front Original Rotor Information | |
| Brake Rotor model | 22155 |
| Rotor Diameter | 305 mm |
| Rotor Hat Diameter | 127 mm |
| Central Hole Diameter | 71.9 mm |
| Disc Thickness | 26 mm |
| Minimum Disc Thickness | 24.5 mm |
| Total Height | 63.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |
| Rear Original Rotor Information | |
| Brake Rotor model | 11152 |
| Rotor Diameter | 305 mm |
| Rotor Hat Diameter | 127 mm |
| Central Hole Diameter | 72.1 mm |
| Disc Thickness | 10 mm |
| Minimum Disc Thickness | 8.5 mm |
| Total Height | 76.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Solid |
Installation Case
| Installation Case Brake Kit Information | ||
| Car Model | Jeep Great Cherokee 2002-2007 year | |
| Front | Rear | |
| TEI Caliper Model | S60 | S40 |
| Caliper Color | Red | Red |
| Rotor Size | 405X34 MM | 380X28 MM |
| Rotor Style | DRILLED | DRILLED |
| Bolt Type | FIXED | FIXED |
| Brake Pad Type | SPPA | SPPA |
| Noted:1.You can click the caliper model to check the products information.For example,You can click S60 to check the S60 brake kit information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad |
||
We need know the VIN of your car before placing the order .
Calipers Color for Optional
Package size:42*42*42cm
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
ROTOR SPECS:
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.
|
|
| Brand Name: | TEI Racing |
| Model Number: | S60+S40 |
| MOQ: | 1 |
| Packaging Details: | 42*42*42cm Brand Box |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
TEI Racing S60 6piston Big Brake Kit for Performance Cars Jeep Great Cherokee 20inch
Jeep Great Cherokee 2002-2007 year
It can be installed our front and rear brake kit
Minimum Rear Rotor Size is 355 mm
Normal handbrake
The original wheels do need to add 20 mm Spacers.
(If you are not sure,you can provide your car ET value and we can check it for you)
Orginal Brake Rotor Information
Front:
| Front Original Rotor Information | |
| Brake Rotor model | 22155 |
| Rotor Diameter | 305 mm |
| Rotor Hat Diameter | 127 mm |
| Central Hole Diameter | 71.9 mm |
| Disc Thickness | 26 mm |
| Minimum Disc Thickness | 24.5 mm |
| Total Height | 63.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |
| Rear Original Rotor Information | |
| Brake Rotor model | 11152 |
| Rotor Diameter | 305 mm |
| Rotor Hat Diameter | 127 mm |
| Central Hole Diameter | 72.1 mm |
| Disc Thickness | 10 mm |
| Minimum Disc Thickness | 8.5 mm |
| Total Height | 76.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Solid |
Installation Case
| Installation Case Brake Kit Information | ||
| Car Model | Jeep Great Cherokee 2002-2007 year | |
| Front | Rear | |
| TEI Caliper Model | S60 | S40 |
| Caliper Color | Red | Red |
| Rotor Size | 405X34 MM | 380X28 MM |
| Rotor Style | DRILLED | DRILLED |
| Bolt Type | FIXED | FIXED |
| Brake Pad Type | SPPA | SPPA |
| Noted:1.You can click the caliper model to check the products information.For example,You can click S60 to check the S60 brake kit information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad |
||
We need know the VIN of your car before placing the order .
Calipers Color for Optional
Package size:42*42*42cm
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
ROTOR SPECS:
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.
