BMW E39/E39 M/E39 M5 5-Series Front 1997 2003
|Brand||TEI||Craft||One-piece Forged Body||Caliper Length||289mm|
|Model||S60||Caliper Material||Aerial 6082 Aluminum Alloy||Caliper Width||165mm|
|Pistons||6 POTS||Piston Material||Aluminum Alloy||Caliper Height||88mm|
|Logo||Carved||Piston Diameter||38.1mm 31.8mm 28.6mm||Caliper Weight||3.52kg/pcs|
What is included in the brake package:
High performance radial mount calipers (Forged 6061-T6 alloy)
2-pcs floating rotors with alloy hats (full-floating rotors available)
Teflon/stainless steel DOT/ADR compliant brake lines
Direct bolt-on caliper mounting brackets and bolts
Brake pads (Can also be purchased from other brands)
All necessary mounting hardware for direct bolt-on install
Piston material: Aluminum Alloy
Material: Ceramic Graphite
Rotor (Disc+Center Hub)
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Material: Aerial 6061 Aliminum Alloy
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.
The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.
Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.
|TEI Racing Rotor Size||Minimum Inch Wheel Size|
|300*24mm||16inch wheels or above|
|300*28mm||17inch wheels or above|
|330*28mm||17inch wheels or above|
|345*28mm||18inch wheels or above|

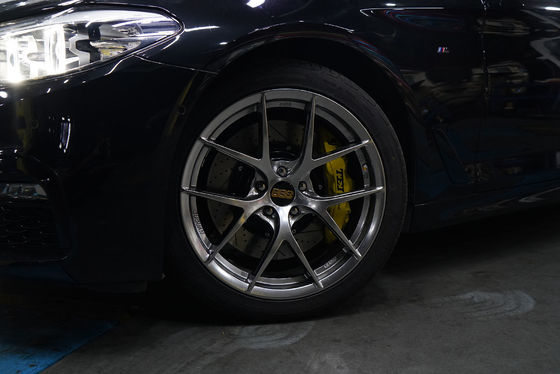

|355*32mm||18inch wheels or above|
|378*32mm||19inch wheels or above|
|405*34mm||20inch wheels or above|
(approx) 4 Hours
Mechanical expertise or professional installation required.
