High Performance BBK For Mercedes-Benz smart 17 Inch Car Rim Front 4 piston piston caliper brake kit auto brake
Mercedes-Benz smart(Four holes of rotor hat) 2015+ year
It can be installed our front brake kit,rear brake kit is drum brake.
Normal handbrake
The original wheels do need to add 20mm Spacers.
(If you are not sure,you can provide your car ET value and we can check it for you)
Orginal Brake Rotor Information
Front:
| Front Original Rotor Information | |
| Brake Rotor model | 20432 |
| Rotor Diameter | 258 mm |
| Rotor Hat Diameter | 100 mm |
| Central Hole Diameter | 61 mm |
| Disc Thickness | 22 mm |
| Minimum Disc Thickness | 19.8 mm |
| Total Height | 44 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |

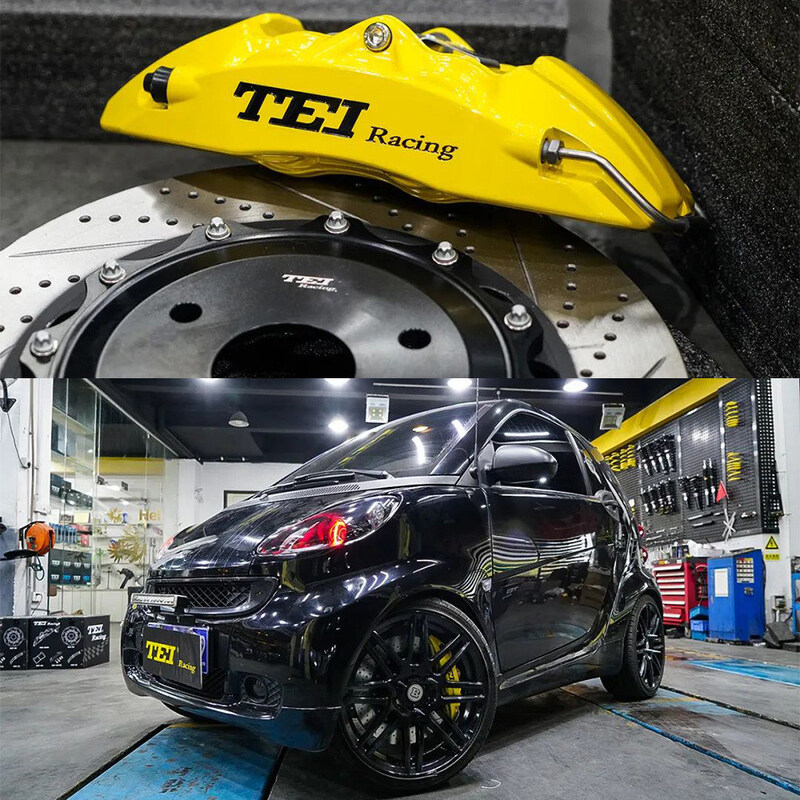

Installation Case
| Installation Case Brake Kit Information | ||
| Car Model | Mercedes-Benz smart 2015+ year | |
| Front | Rear | |
| TEI Caliper Model | P40NS | / |
| Caliper Color | Yellow | / |
| Rotor Size | 330X28 MM | / |
| Rotor Style | DRILLED AND SLOTTED | / |
| Bolt Type | FIXED | / |
| Brake Pad Type | SPPA | / |
| Noted:1.You can click the caliper model to check the products information.For example,You can click P60ES to check the P60ES brake kit information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad |
||
FAQ
Q1: How do I know if I need to add spcaers when I install your brake kit?
A1:You can tell us your car rim parameter and we check it for you.Normally,if your rim ET value is more than 38,you need to add the spacers.
Q2:After payment, when can I get the brake kit?
A2:For normal order,we need to take about 5-7 days to produce your brake kit.For the customzied order,we need to take about 10-15 days to finish the production.
As for the shipment time,7-12 days by express/25-45 days by sea transportation/5-15 days by air/25-35 days by train
If you dont have logistic agent in China,you can tell us your address and we check the shipment for you.
Q3:How can I pay?
A3:Bank Transfer,Paypel or Western Union.We also have online store on Alibaba or Aliexpress.You also can place the order by them.
