|Brand Name:||TEI Racing|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||42*42*42cm Brand Box|
|Payment Terms:||T/T, Western Union, MoneyGram,Paypal|
|Supply Ability:||200 kits per month|
|Car Model:||Land Cruiser||Material:||Aerial 6082 Aluminum Alloy|
|Piston:||6pistons||Piston Diameter:||38.1mm 31.8mm 28.6mm|
|Disc Size:||378*32mm 405*34mm||Weight:||46kg For Full Kit|
|Color:||Black Red Yellow Green Blue Silver|
car modification parts,
bbk brake kit
Toyota Land Cruiser S60 6piston Big Brake Kit for SUV 20inch wheel needed

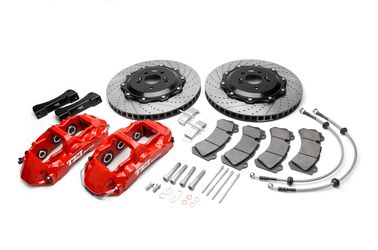

What's in the Box
Passenger Side Front TEI Racing Six-Piston Caliper
Driver Side Front TEI Racing Six-Piston Caliper
2-piece TEI Racing Front Rotors
Braided Stainless Steel Brake Lines
Brake Pads (one set, for both calipers)
TEI Racing Bolt-On Front Brake Kit
6 Piston Aluminum Calipers
2-piece (378mm/405mm) Type 1 Slotted /Drilled Brake Rotors
Braided Stainless Steel Lines
Compatible with Factory Master Cylinder, ABS and Traction Control System
Piston material: Aluminum Alloy
Material: Ceramic Graphite
Rotor (Disc+Center Hub)
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Material: Aerial 6061 Aliminum Alloy
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.
10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.
Calipers Color for Optional
The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.
Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.
|TEI Racing Rotor Size||Minimum Inch Wheel Size|
|300*24mm||16inch wheels or above|
|300*28mm||17inch wheels or above|
|330*28mm||17inch wheels or above|
|345*28mm||18inch wheels or above|
|355*32mm||18inch wheels or above|
|378*32mm||19inch wheels or above|
|405*34mm||20inch wheels or above|
(approx) 4 Hours
Mechanical expertise or professional installation required.
