Toyota Big Brake Kit
>
BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel Front S40 4 Piston Caliper Kit For Rear

BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel Front S40 4 Piston Caliper Kit For Rear

Brand Name: TEI Racing
Model Number: S60+S40
MOQ: 1
Packaging Details: 42*42*42cm Brand Box
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Material:
Aerial 6082 Aluminum Alloy
Piston:
6pistons
Piston Diameter:
38.1mm 31.8mm 28.6mm
Disc Size:
378*32mm 405*34mm
Weight:
46kg For Full Kit
Color:
Black Red Yellow Green Blue Silver
Supply Ability:
200 kits per month
Highlight:

S60 6 Piston Brake Kit

,

6082 S60 6 Piston Brake Kit

,

S40 4 Piston Caliper Kit

Product Description

S60 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel Front S40 4piston Caliper Kit For Rear

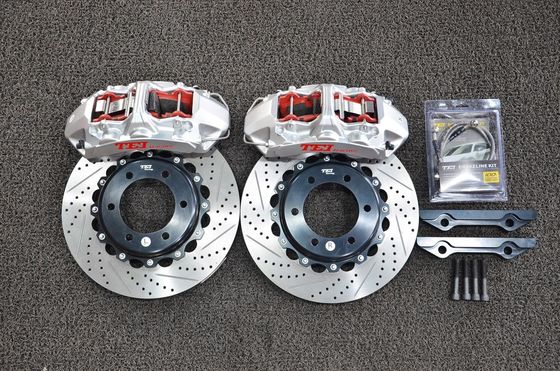

1 Full kit included



2 x Calipers

2 x Discs

2 x Brake Lines

4 x Brake Pads

2 x Adapters( Brackets)

Hardwares



The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.

TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.

TEI Racing Rotor Size Minimum Inch Wheel Size
285*24mm 15inch wheels
300*24mm 16inch wheels or above
300*28mm 17inch wheels or above
330*28mm 17inch wheels or above
345*28mm 18inch wheels or above
355*32mm 18inch wheels or above
378*32mm 19inch wheels or above
405*34mm 20inch wheels or above





Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.





BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 0

BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 1BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 2



ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.


(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color


Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC


Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.



WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.





BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 3

BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 4BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 5BBK Big Brake KIt 6 Piston Brake Kit For Toyota Prado 20 Inch Wheel  Front  S40 4 Piston Caliper Kit For Rear 6



What is included in the brake package:



High performance radial mount calipers (Forged 6082)
2-pcs floating rotors with alloy hats (full-floating rotors available)
Teflon/stainless steel DOT compliant brake lines

Direct bolt-on caliper mounting brackets and bolts
Brake pads (Can also be purchased from other brands)
All necessary mounting hardware for direct bolt-on install




Package size:42*42*42cm


Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49


Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
