DODGE Challenger SRT-8 W/V6 W/V8 Big Brake Kits 6 Piston Caliper With 405*34mm Rotor
What's in the Box
DODGE | DODGE Challenger SRT-8 Front 2008 > |
DODGE | DODGE Challenger SRT-8 Rear 2008 > |
DODGE | DODGE Challenger w/V6 Engine Front 2008 2010 |
DODGE | DODGE Challenger w/V6 Engine Front 2011 > |
DODGE | DODGE Challenger w/V6 Engine Rear 2008 2010 |
DODGE | DODGE Challenger w/V6 Engine Rear 2011> |
DODGE | DODGE Challenger w/V8 Engine Front (Excluding SRT-8) 2008 2010 |
DODGE | DODGE Challenger w/V8 Engine Front (Excluding SRT-8) 2008 2010 |
DODGE | DODGE Challenger w/V8 Engine Front (Excluding SRT-8) 2011> |
DODGE | DODGE Challenger w/V8 Engine Front (Excluding SRT-8) 2011> |
DODGE | DODGE Challenger w/V8 Engine Rear (Excluding SRT-8) 2008 2010 |
DODGE | DODGE Challenger w/V8 Engine Rear (Excluding SRT-8) 2011 > |
DODGE | DODGE Charger SRT-8 Front 2005> |
DODGE | DODGE Charger SRT-8 Rear 2005> |
DODGE | DODGE Charger w/V6 Engine Front 2011 > |
DODGE | DODGE Charger w/V6 Engine Front 2011> |
DODGE | DODGE Charger w/V6 Engine Front (Excluding AWD) 2005 2010 |
DODGE | DODGE Charger w/V6 Engine Front (Excluding AWD) 2005 2010 |
DODGE | DODGE Charger w/V8 Engine Front (Excluding AWD, SRT-8) 2005 2010 |
DODGE | DODGE Charger w/V8 Engine Front (Excluding AWD, SRT-8) 2005 2010 |
DODGE | DODGE Charger w/V8 Engine Front (Excluding AWD, SRT-8) 2011 |
DODGE | DODGE Charger w/V8 Engine Front (Excluding AWD, SRT-8) 2011 |
DODGE | DODGE Charger w/V8 Engine Rear (Excluding AWD, SRT-8) 2005 2010 |
DODGE | DODGE Charger w/V8 Engine Rear (Excluding AWD, SRT-8) 2011 |
Feature:

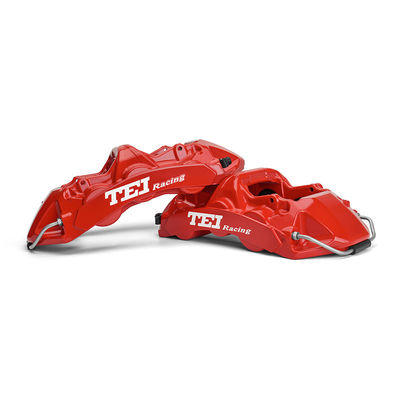

Brand | TEI | Craft | One-piece Forged Body | Caliper Length | 289mm |
Model | S60 | Caliper Material | Aerial 6082 Aluminum Alloy | Caliper Width | 165mm |
Pistons | 6 POTS | Piston Material | Aluminum Alloy | Caliper Height | 88mm |
Logo | Carved | Piston Diameter | 38.1mm 31.8mm 28.6mm | Caliper Weight | 3.52kg/pcs |
Brand | TEI | Craft | One-piece Forged Body | Caliper Length | 274mm |
Model | S40 | Caliper Material | Aerial 6082 Aluminum Alloy | Caliper Width | 165mm |
Pistons | 4 POTS | Piston Material | Aluminum Alloy | Caliper Height | 75mm |
Logo | carved | Piston Diameter | 38.1mm 29.5mm | Caliper Weight | 2.76kg/pcs |
Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
ROTOR SPECS:
2-piece floating rotors with 6061-T6 alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
WARRANTY:
10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.
The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.

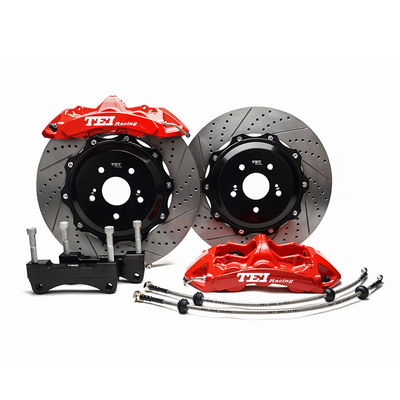

Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.
TEI Racing Rotor Size | Minimum Inch Wheel Size |
285*24mm | 15inch wheels |
300*24mm | 16inch wheels or above |
300*28mm | 17inch wheels or above |
330*28mm | 17inch wheels or above |
345*28mm | 18inch wheels or above |
355*32mm | 18inch wheels or above |
378*32mm | 19inch wheels or above |
405*34mm | 20inch wheels or above |
Installation Info
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
