|Place of Origin:||China,guangzhou|
|Brand Name:||Tei racing|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Packaging Details:||42*42*42cm Brand Box|
|Payment Terms:||T/T,, Western Union, MoneyGram,Paypel|
|Application:||TOYOTA 2012 -||Colour:||Yellow Red Silver Blue|
|Disc Size:||330*28/355*28mm||Wheel Size:||18inch 19inch|
|Caliper Piston:||4piston||Craft:||Two Pcs Forged|
|Material:||Aerial 6082 Aluminum Alloy|
330x28mm TEI Racing Big Brake Kit,
Toyota TEI Racing Big Brake Kit,
Disc TEI Racing Big Brake Kit

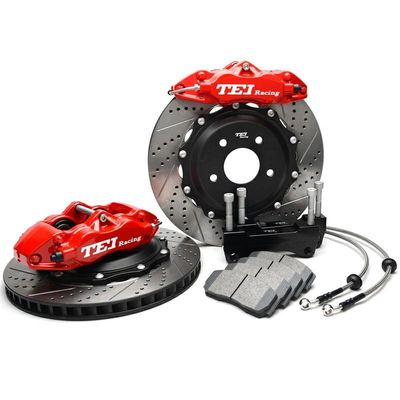

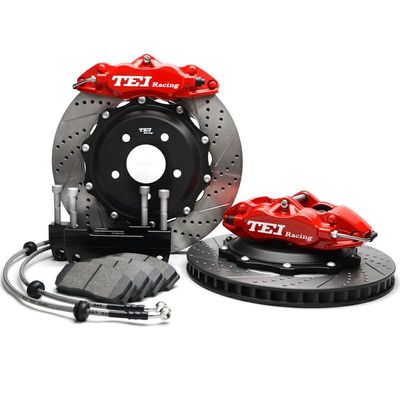

Disc 355x28mm Brake Kit 4-Piston Caliper With 2Piece Rotor Big Brake Kit For TOYOTA 2012 -

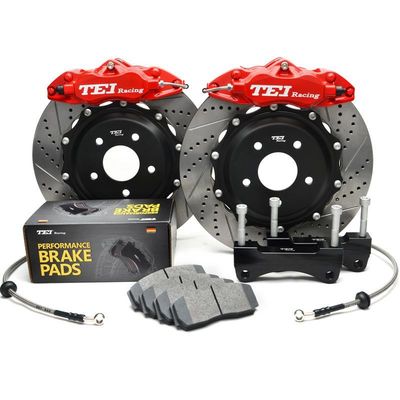

What's in the Box
Passenger Side Front TEI Racing 4-Piston Caliper
Driver Side Front TEI Racing 4-Piston Caliper
2-piece TEI Racing Front Rotors
Braided Stainless Steel Brake Lines
Brake Pads (one set, for both calipers)
TEI Racing Bolt-On Front Brake Kit
6 Piston Aluminum Calipers
2-piece (378mm/405mm) Slotted /Drilled /Drilled and Slotted Brake Rotors
Braided Stainless Steel Lines
Compatible with Factory Master Cylinder, ABS and Traction Control System
What is included in the brake package:
High performance radial mount calipers (Forged 6082)
2-pcs floating rotors with alloy hats (full-floating rotors available)
Teflon/stainless steel DOT compliant brake lines
Direct bolt-on caliper mounting brackets and bolts
Brake pads (Can also be purchased from other brands)
All necessary mounting hardware for direct bolt-on install
Material: Ceramic Graphite
Rotor (Disc+Center Hub)
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.
(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color
Material: Aerial 6061 Aliminum Alloy
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell
Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.
10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.
The number of pots of the calipers will also play a role in term of pressure applied on the pads to make the contact as good as possible on the rotors. In order to fit the caliper on your original chassis, TEI Racing provides caliper brackets to position the calipers with your new braking system, making the perfect set up for your car brakes system.
Go fast and stop faster. TEI Racing Big Brake Kits provide you with serious braking power when you need it most. TEI Racing brake kits are offered for both the front and rear brakes with rotor sizes ranging from 285mm-405mm drilled or slotted or drilled and slotted, 2-6 piston Forged Monoblock aluminum caliper options, and custom colors. Stainless steel brake lines, brake pads, and all hardware are included for a direct bolt-on installation where no modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft quality billet aluminum and feature heavy duty aluminum pistons mated to temperature resistant seals. These high performance calipers are able to utilize a lightweight construction while providing dramatically increased braking performance. The rotors included in TEI Racing big brake kits features a two-piece design with drilled or slotted surfaces which help minimize fade and dissipate heat under the most extreme braking.
|TEI Racing Rotor Size||Minimum Inch Wheel Size|
|300*24mm||16inch wheels or above|
|300*28mm||17inch wheels or above|
|330*28mm||17inch wheels or above|
|345*28mm||18inch wheels or above|
|355*32mm||18inch wheels or above|
|378*32mm||19inch wheels or above|
|405*34mm||20inch wheels or above|
(approx) 4 Hours
Mechanical expertise or professional installation required.
