China TEI Racing Big Brake Kit manufacturer

P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable

Product Details:
Place of Origin: China
Brand Name: TEI Racing
Certification: China National Inspection Agency
Model Number: P60ES
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 700-750 USD/SET
Packaging Details: 42*42*42cm Brand Box
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 2000 sets per month

Detail Information

Material: Aerial 6082 Aluminum Alloy Pistons Quantity: 6 Piston
Piston Size: 50.06 CM2 Color: Reb Blue Yellow Black Silver Green
Weight: 40 KG Disc Size: 355/378*28 MM DISC
Wheel Size: 18inch 19inch 20inch
High Light:

P60ES Rotor Brake Kit

,

Rotor Brake Kit Slotted

Product Description

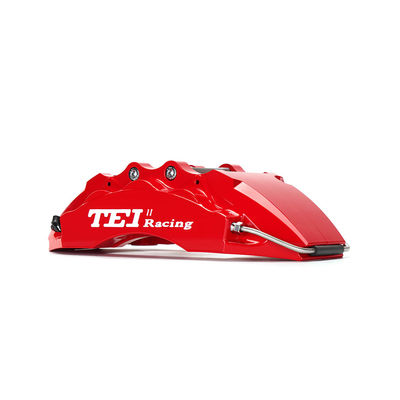

TEI Racing P60ES 6 piston Big Brake Kit for Performance Cars FRONT wheel





Product Type P60ES Front Brake Kit
Piston Quality 6 Piston
Piston Area 50.06 cm2
Piston Material 6061 Alumium Alloy
Caliper Parameter 325 X 151 X 85 MM
Caliper Weight 3.95 KG/pcs
Caliper Material Aerial
Manufacuring Craft By Forging+CNC
Color Finish Treatment High-temperature Baking Coating
Optional Colors Red/Yellow/Sliver/Customized as required
Fitting Wheel Size 18/19 Inch
Fitting Disc Size 355/378 X 32 mm
Brake Disc Rotor(Disc+Center Hub)
Disc Material High-Carbon Iron
Disc Craft By casting
Plane Bounce <0.03 mm
Center Hub Material Aerial aluminum alloy
Center Hub Craft By CNC manufacturing
Center Hub Color Black/Sliver or Customized as required
Adapter+Brake line+Brake pads
Adapter Material Aerial aluminum alloy
Adapter Craft By CNC manufacturing
Adapter Color Black/Sliver/Customized
Brake Pad Material Ceramic+Graphite
Brake Pad Friction Coefficient 0.38-0.42(Ceramic)/0.42-0.48(Metal)
Brake Pad Size 148.8 X 82 X 17 mm
Brakeline Material Steel wire outside and special rubber inside
Heat-Resistant 0-700 Degree







2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters(Bracket)
2x Center hub(Rotor Hat)
4x Brake pads

P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 0





As the power of the car is getting larger and larger, the requirements for braking

are getting higher and higher. Tei Racing has always focused on the field of security

braking. In order to further enhance the user experience, we specially developed

a new fourth -generation P series and street performance brake caliper kits around

the product concept of "enjoying peace and controlling it." Optimized the matching

of product spare parts to reduce the chance of noise to achieve the best performance and comfort.



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 1



In terms of cost performance, the P -series brake kit is second to none. The new

fourth -generation P -series caliper P60ES is designed with smooth lines.

The cool shape is bright in the field of braking. The face value is online and colorful.

In terms of brake pads, high -end ceramic materials not only reduce the chance of

noise generated by braking, but also increase the brake performance 10%compared

with the previous generation, effectively shorten the braking distance!



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 2



This caliper is suitable for 18 inches and upper hubs, and it is equipped with

a larger diameter brake disc 355*32mm and 378*32mm. You can see the large

caliper through the gap between the wheel spoke bar, which can achieve the

appearance and feeling of the super sports car at the same time.



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 3



The appearance of the calipers adopts a new high -temperature paint process,

making the paint surface more bright and lasting. Even in harsh environments,

there will be no fading or fading. At the same time, the logo adopts relief design,

highlighting the brand's uniqueness.



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 4



The calipers are forged from aviation aluminum alloy. Under the coaxial processing

of high -precision CNC, this caliper is still a two -piece forging design structure,

and the body is fixed on the back. The structure of some modified caliper is

simple and atmospheric, which is shiny.



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 5



Symmetric six -piston design, consisting of three different diameter of 6 pistons.

The diameter of the piston is 27mm/31.8mm/38mm. The piston fuel supply area is 50.06cm². , Eliminating everyone's doubts about the long feet of the brakes, the brake itinerary is soft.



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 6



The piston structure adopts an external dust cover and the internal sealing ring,

which enhances the sealing and reduces the impact of dust such as dust.

The overall lightweight hollow design of the calipers, the weight of a single

calipers is about 3.9kg, which reduces the weight of the vehicle while ensuring

the strength. Make the car control more flexible!



P60ES 6 Piston Caliper 355*32mm 378*32mm Rotor Brake Kit Drilled / Slotted / Drilled And Slotted Discs Selectable 7



The brake disc is made of high -carbon cast iron and passed through heat

treatment. Even under bad braking conditions, it is still strong, and there will

be no deformation and cracking. Due to the special heat -resistant and anticorrosive

coating, it reliably inhibits rust and efficient heat dissipation to prevent overheating.

As a result, the excellent braking performance and long service life of the brake disc

and brake pads are ensured.
