China TEI Racing Big Brake Kit manufacturer

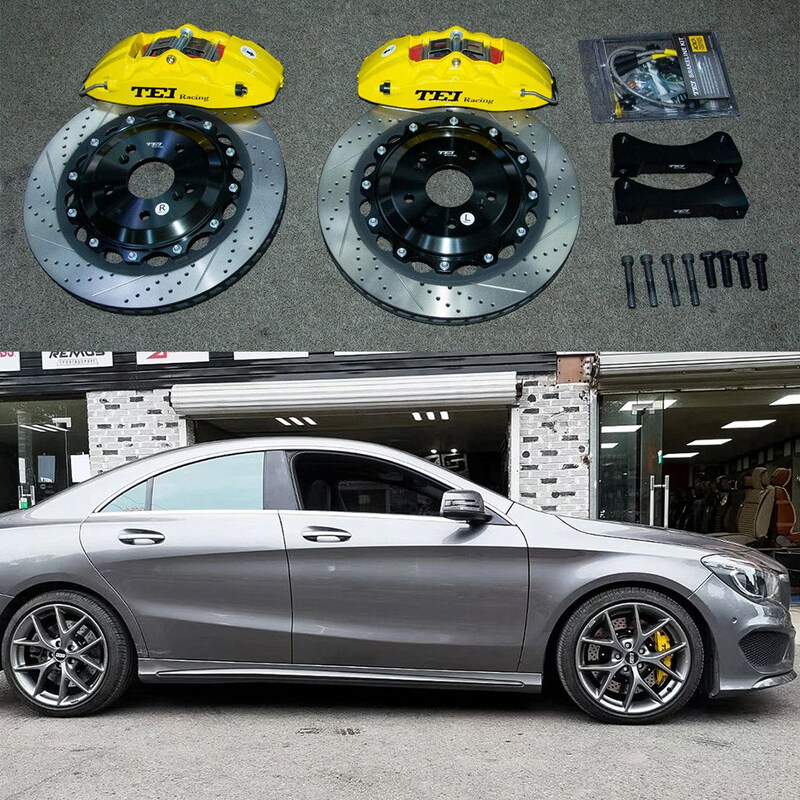

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System

Product Details:
Place of Origin: China
Brand Name: TEI-RACING
Certification: China National Inspection Agency
Model Number: P40NS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 600 USD/SET
Packaging Details: Package: 1.Each part is wrapped by EPE foam inside, carton box outside ; 2.Wooden frame is available as required3.Box size:42x42x42cm
Delivery Time: 10-15 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram and so on
Supply Ability: 10000 sets per month

Detail Information

Caliper Model: P40NS Caliper Material: 6061 Aluminum Alloy
Rotor Material: High Carbon Alloy Package Weight: 33 Kg
Shipment Way: Express.air Or Sea Payment Way: Bank Transfer,Western Union Or Paypel
High Light:

W117 4 Piston Brake Kit

,

BBK 4 Piston Brake Kit

Product Description

High Performance BBK For Mercedes-Benz CLA Class W117 18 Inch Car Rim Front 4 piston brake kit auto brake system



Mercedes-Benz CLA W117 2013-2018 year

It can be installed our front and rear brake kit

Minimum Upgrade Rear Rotor Size is 330 mm,Double Caliper(Keep EPB function) Minimum Rear Rotor Size is 355 mm,Special Electric Caliper Minimum Rear rotor size is 380 MM

Normal or Electric handbrake

The original wheels do not need to add Spacers.



Orginal Brake Rotor Information



Front:



Front Original Rotor Information
Brake Rotor model 20445 or 20451
Rotor Diameter 320 mm
Rotor Hat Diameter 112 mm
Central Hole Diameter 67 mm
Disc Thickness 30 mm
Minimum Disc Thickness 28 mm
Total Height 51 mm
Number of Positioning Holes 5
Disc type Ventilation

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System 0

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System 1

Rear Original Rotor Information
Brake Rotor model 12426(20718)
Rotor Diameter 295 mm
Rotor Hat Diameter 112 mm
Central Hole Diameter 67 mm
Disc Thickness 10 mm(22 mm)
Minimum Disc Thickness 8.3 mm(19.4 mm)
Total Height 44 mm(42.5 mm)
Number of Positioning Holes 5
Disc type Solid(Ventilation)

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System 2

High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System 3

nstallation Case Brake Kit Information
Car Model MB V260
  Front Rear
TEI Caliper Model P40NS /
Caliper Color YELLOW /
Rotor Size 355X28 MM /
Rotor Style DRILLED /
Bolt Type FIXED /
Brake Pad Type SPPA /

Noted:1.You can click the caliper model to check the products information.For example,You can click P40NS to check the P40NS brake information.

2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad

SSS,XSS,MSS=Racing Metal Brake Pad
